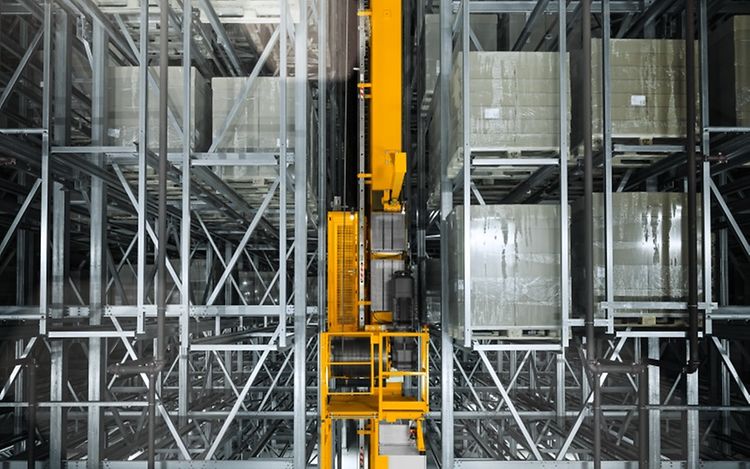

Single- and double-depth stacker cranes for pallet warehouses
Do you want to automate the storage and removal of your goods for long-term optimisation of the material flow in your warehouse? Choose a modern stacker crane as the key to top performance and efficiency in your automated warehouse.
Boost your system performance
Optimise your energy efficiency
Reduce your operating costs
Flexible configuration
7,500
kg max. load
The storage locations for pallets, pallet cages and individual carrier systems have a capacity of up to 7.5 t and are suitable for virtually all types of goods.
–35°
min. warehouse temperature
Our versatile stacker cranes can be used in warehouses with normal temperature ranges, temperature-controlled storage, and cold stores.
45 m
max. storage height
We will set up automated pallet warehouses for you in the form of integrated or free-standing silo warehouses up to 45 metres high.
All the benefits
Maximum throughput
Low energy consumption
Optimum utilisation of space
Minimal maintenance
Variety of load carriers

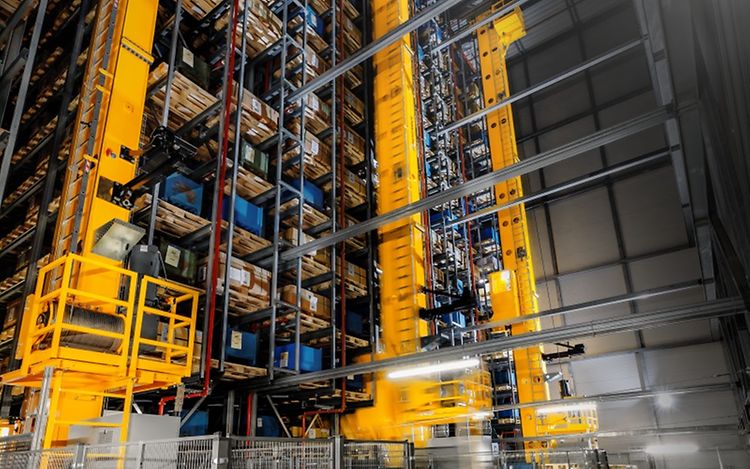

High-performance stacker cranes for your automated pallet warehouse
Flexible and modular with an innovative design, our stacker cranes adapt to your individual needs. Benefit from the versatility of this best-in-class automation solution. We design the solution to match your requirements based on the stipulated load capacity, warehouse height and throughput. After all, only a stacker crane tailored to your warehouse will allow you to achieve maximum throughput and maximum utilisation of space.
Whether it is goods in, goods out, a racking system or a conveyor system, we will work with you to analyse your individual transport structures to develop a custom solution employing optimum processes for your automated pallet warehouse.
Frequently asked questions from customers
What is a stacker crane?
A stacker crane is designed to store goods in and remove goods from storage locations within an automated small-parts warehouse or pallet high-bay warehouse.
What are the benefits of a stacker crane?
Warehouse automation by stacker crane offers many benefits, such as increased productivity, reduced error rates, optimised space capacity, plus greater reliability and operational safety. It can be used at great heights in extremely narrow aisles to maximise warehouse capacity.
How does a stacker crane for pallets work?
Our stacker cranes have three operating modes: automated, semi automated and manual. Fully automated operation is the usual mode employed. The stacker crane automatically follows the instructions that it receives from the Warehouse Management System, i.e. storage and removal of pallets using a load handler, relocations and independent learning of storage-location occupancy. Semi-automated mode is used for specific operations and support purposes. Manual mode is for conducting maintenance tasks.
Do stacker cranes convey pallets only?

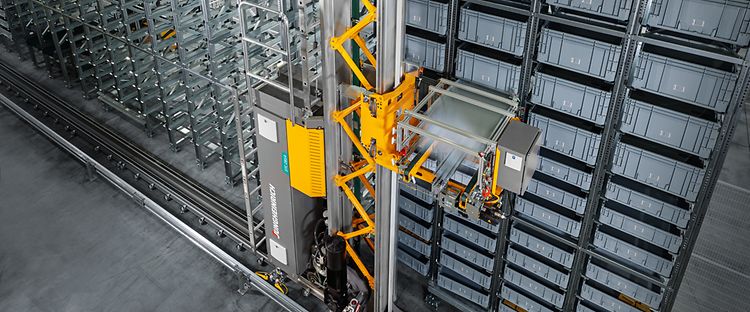

Automatic stacker cranes for pallets are predominantly used for handling and storing palletised goods. However, they can also handle other load carriers such as pallet cages and individual system carriers. As well as our stacker crane for pallets, our product range also includes stacker cranes for small parts. These stacker cranes were specifically developed for smaller load units such as containers, boxes and trays.
Are stacker cranes energy efficient?
Jungheinrich stacker cranes are equipped with regenerative devices called SuperCaps, which convert energy into power during lowering and braking. The electrical energy that is generated is used by other parts of the system, reducing their energy consumption and the overall carbon footprint.
Will a stacker crane integrate seamlessly into my IT infrastructure?
The interaction between the warehouse management system, the Jungheinrich WCS and the PLC enables seamless integration into existing IT infrastructures. The software systems coordinate the transport orders and transfer the movement instructions to the stacker crane.
With which other warehouse systems is it possible to combine the stacker crane?
Whether connecting to a conveyor system or working alongside mobile robots, our stacker cranes are flexible to enable their use with other warehouse components. We will be happy to analyse your individual transport structures with you to find the optimum solution for your automated pallet warehouse.
For which industries is the stacker crane suitable?
Jungheinrich stacker cranes are versatile warehouse solutions that meet the requirements of many companies. Suitable industries include food, metal processing, automotive and pharmaceuticals to name just a few.
In addition to identifying requirements, professional material flow consulting, system visualisations and rough and detailed planning form the basis for determining the optimum level of automation for your future-proof warehouse environment.
As a general contractor, we will accompany you right up to the handover of the turnkey system and ensure the precise implementation of every process step in transparent coordination with your internal project manager.
After project completion, we will continue to assist you with comprehensive service and support for your automated systems, a widespread customer service network and our support hotline.
Maximum utilisation of space in automated pallet warehouses
When you choose a Jungheinrich stacker crane, you receive the latest technology for fast and efficient automated storage of your goods. Only when the racking system, software and all the equipment in use are working together seamlessly can you fully reap the benefits of a complete automation solution. The storage locations for pallets, pallet cages and individual carrier systems can accommodate loads of up to 7.5 tonnes in single- or double-depth format. Warehouses with a normal temperature range, temperature-controlled warehouses and cold stores with temperatures down to -35°C are all suitable environments.

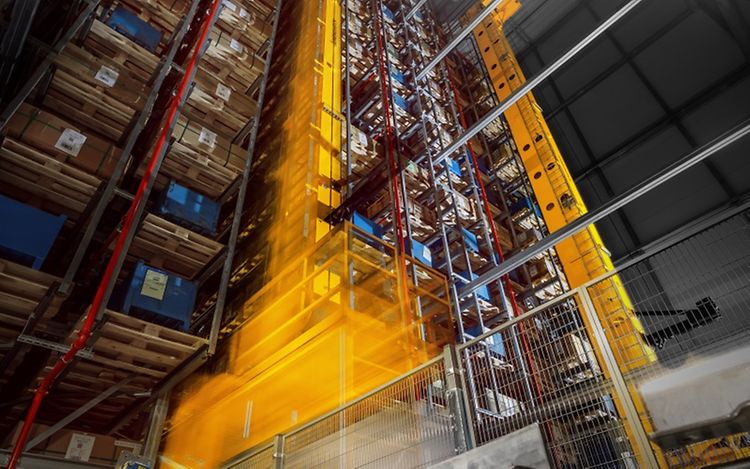

Take your goods throughput to a whole new level
Our high-speed stacker cranes provide fast storage and removal for your automated pallet warehouse. Benefit from easier autonomous warehouse management without the errors that can occur through manual handling. The stacker crane enables 24-hour operation, 365 days a year, for maximum goods throughput and maximum efficiency. Whether you need a racking system, stacker cranes, conveyor systems, control software or warehouse management software, we have all the components that you need to implement your future-proof automation solution. We will also be with you every step of the way, from planning to implementation and beyond.
