Electric pedestrian controlled truck 1,4 - 1,6t

2400 - 6000 mm
1400 - 1600 kg

Compact & powerful with Li-ion battery.
Suitable for the transport of special loads.
Suitable for closed pallets / transverse Euro pallets.
Intelligent stacking assistance systems ensure safety.
Smart ergonomic features for fatigue-free operation.

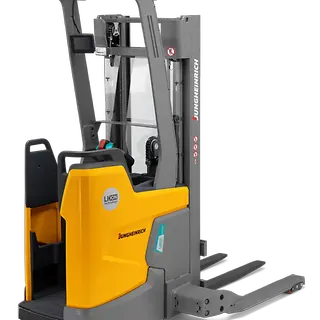

ERC 214bi/ 216bi

The powerful ERC bi electric stacker truck is equipped with lithium-ion technology as standard – for a revolutionary, extremely compact truck design. This stacker truck is very manoeuvrable, enabling it to master a wide range of tasks. The laterally offset support arms allow the forks to be lowered to the ground. The ERC bi can therefore pick up special loads and drive under closed pallets with great flexibility. The ERC wide-tread models are designed for stacking and retrieval operations at heights of up to 6 metres. They facilitate the transport of goods over medium to long distances. Perfect ergonomics are ensured by the stable, cushioned stand-on platform and smartPILOT with automatic centring, which enables one-handed truck control. Thanks to good visibility through the mast and the panoramic window (optional) in the overhead guard, the operator always has a great view during the stacking process.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Learn more

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Lithium-ion technology

Significantly shorter truck dimensions due to elimination of the battery compartment.
Easy manoeuvring in the racking aisle.
More efficient planning and use of space in the warehouse (narrower work aisles possible).
High availability thanks to extremely short charging times.
Cost savings due to longer service life and low maintenance requirement.
Comfort charging concept: charging interface is ergonomically located for fast and frequent booster charging.
Battery is easily accessible and can be removed in a few easy steps if necessary.

Maximum goods throughput

Top speeds of 12 km/h and powerful acceleration with drivePLUS (standard).
Simple, intuitive operation.
Extensive support for storing and removal.

High-performance mast

Outstanding stability, fast lifting and lowering as well as excellent visibility through the mast.
Exceptional residual capacity at high heights.
Smooth mast transition thanks to hydraulic mast retraction cushioning.
Laterally offset support arms ensure extra stability when travelling and lifting.

Additional options

Safe operation

Adjustment of travel speed depending on the load and direction of travel.
New warning concept consisting of three components: visual (display), audible (sound signal) and tactile (vibration in the tiller handle) in the event of overload.

Optional assistance systems

operationCONTROL: Display of lift height, load weight and residual carrying height incl. warning if nominal and residual capacity is exceeded.
positionCONTROL: Rack height select incl. height indicator.

Fixed stand-on platform

3-sided protection for maximum safety of the operator.
Comfortable lateral standing and driving position for improved ergonomics.
Platform suspension (optional) is individually adjustable to the weight of the operator, ensuring joint and back-friendly travel.
Foot protection laser (optional): automatic reduction of the travel speed when feet protrude from the platform.

Overhead guard as per DIN ISO 6055

Robust roof for maximum protection from falling loads.
Available with cross beams or panoramic window for optimised visibility (optional).

Additional options

Ergonomic workstation

Generous storage compartments and storage opportunities on the options bracket or overhead guard.
Attachment of brackets for mounting additional equipment.

smartPILOT steering

Easier and more intuitive manoeuvring, especially when cornering.
More compact tiller arm with optimal access to the truck's functions and automatic centre positioning.
Off-centre arrangement for a comfortable, safe and ergonomic standing position.
Height-adjustable tiller arm.

Multifunctional display

4-inch display with language-neutral icons showing battery charge status with residual time display, hourmeter and time.
Optional 6-inch display in operator view indicating lift height, load weight and residual carrying height.

Flexible with special loads

Laterally offset support arms and forged forks that can be lowered to the ground.
Perfect for the handling of special loads, transverse Euro pallets or closed pallets (UK, US).
ISO fork carriages provide diverse adaptation options for a wide variety of applications.

Additional options

Increased ease of use with optional sprung stand-on platform to reduce the vibrations felt by the operator.





Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ERC 214bi	1,400 kg	6,000 mm	12 km/h	2,425 mm	24 V
ERC 216bi	1,600 kg	6,000 mm	12 km/h	2,425 mm	24 V
