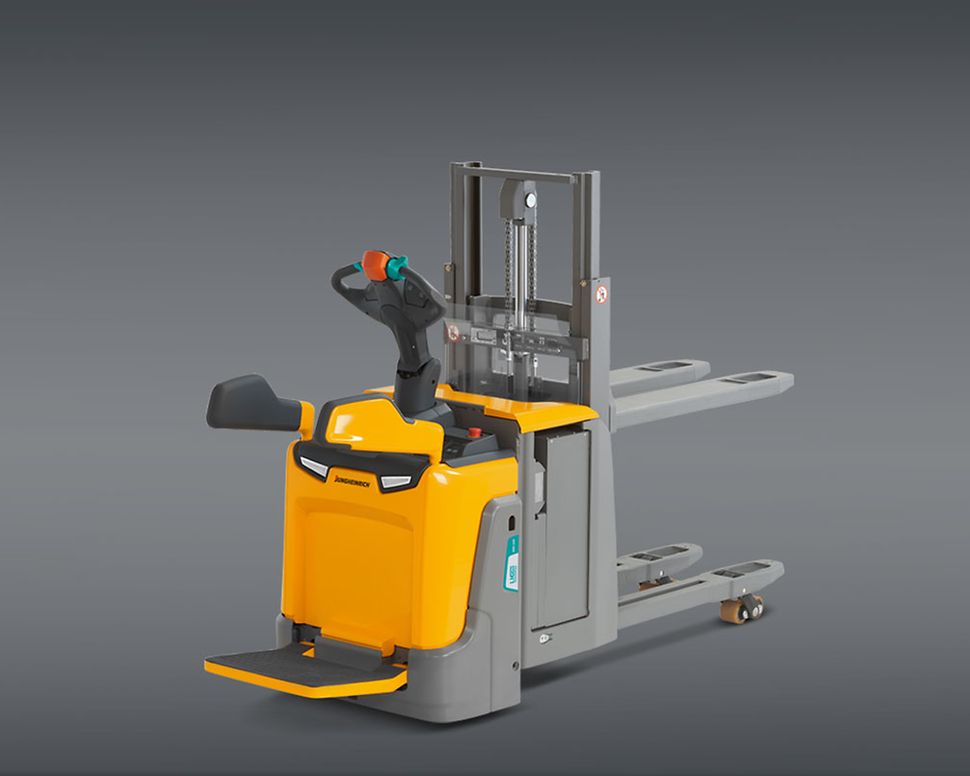

Electric pedestrian stacker 2.0t

ERD 220 drivePLUS

Load capacity
2,000 kg
Free lift
up to 2,068 mm
Lift height
up to 2,905 mm
Load centre distance
600 mm
Travel speed
unladen 14 km/h
Lift speed
unladen 0.32 m/s
Battery voltage
24 V
Battery capacity
250 Ah
Weight including battery
1,010 kg

Rental terms

Benefits

The versatile and powerful electric ERD stackers count among the most customisable stackers in the Jungheinrich portfolio. Depending on the application scenario, platform, motor, battery compartment and mast frame can be tailored to meet your individual requirements. With our driveCONTROL option, for example, driving speed can be increased remarkably. In combination with double-deck transports, this allow for two pallets to be moved at once, which leads to an extraordinary level of efficiency. Due to their compact format, the ERD trucks remain manoeuvrable and are also perfectly suited for loading and unloading trucks. The powerful 3-phase AC motor delivers constant and high performance while keeping operating costs low. Due to the maintenance-free motors without carbon brushes, you can rely on long operating hours. The needed energy comes either from our long-lasting lead-acid batteries or, if requested, from our advanced lithium-ion batteries.
