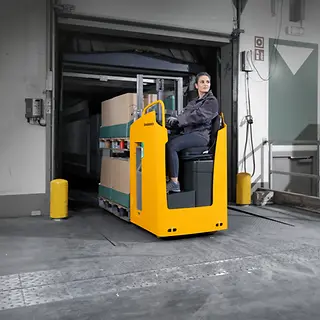

Stand-on/ sideways-seated stacker 2.0t

1660 mm
2000 kg

Ideal for double-decker loading and unloading of HGVs.
Resilient frame for the toughest applications.
Ergonomic seating position for the best comfort.
Electric steering for easy manoeuvring.
Compact design for confined warehouse areas.

ESD 220

Our versatile and powerful ESD 2 is equally as well equipped for manoeuvring in confined spaces as it is for the transport of goods over longer distances. Depending on the application scenario, the truck can be adapted to your individual requirements. With a width of 820 mm, the ESD 2 excels with maximum efficiency in short aisle widths such as the positioning of pallets against the walls inside HGVs or when used in a block warehouse. Maximum goods throughput in the warehouse is achieved by double-decker operation with simultaneous transport of two pallets. Sideways seating ensures outstanding all-round visibility and comfortable working even with frequent changes of direction. The clear 4-inch truck display showing all important functions and the ergonomically optimised multiPILOT provide even more comfort.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Learn more

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Efficient energy management

Optimum energy supply with high battery power between 360 Ah and 465 Ah in the lead-acid range.
Quick and easy lateral battery exchange.

Available with lithium-ion technology

High truck availability thanks to extremely short charging times.
No battery exchange required.
Cost savings due to longer service life and zero maintenance when compared to lead-acid batteries.
No charging rooms or ventilation required as there is no build-up of gas.
High flexibility of use due to modular concept with 130 Ah, 260 Ah or 390 Ah.
Comfort charging socket available as standard and built-in charger as an option.

Comfortable and safe operation

Enclosed stand-on platform: The central position of the operator and the closed truck contours provide optimum protection in all driving conditions.
Safety switch in the foot-well for maximum safety.
Easier entry thanks to the handle on the truck frame, which can also be used as a holder for various functions.
Full 2,000 kg capacity in support arm lift or distribution of 1,000 kg each on mast lift and support arm lift in double-decker operation.

Assistance systems increase your safety

Prevention of accidents with curveCONTROL in load-independent cases.
Maximised safety of the overall process with the optional zoneCONTROL.
Minimised collision damage with the steering position indicator in the display.
Avoidance of collisions with the help of the Floor-Spot warning zone lights.

Ergonomic operator workplace

With the operator positioned sideways to the direction of travel, optimum visibility is ensured and potential neck pain due to frequent changes of direction is prevented.
Easy-to-operate electric steering and comfortable operation with multiPILOT.
The height-adjustable floor plate allows the seating position to be adapted to operators of different heights.
